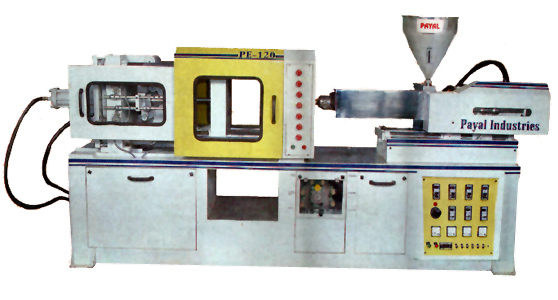

Electrical Penal Based Horizontal Plastic Injection Moulding Machine
........................................................................................................................................................................
Availability :
This Machine is avilable in PE series

Plastic Injection Moulding Machine Supplier, Plastic Injection Moulding Machine Exporter, Injection Moulding Machine, Injection Moulding Machine Manufacturer, Injection Moulding Machine Supplier Electrical Penal Based Horizontal Plastic Injection Moulding Machine Injection Moulding Machine Exporter, Moulding Machine, Moulding Machine Manufacturer, Moulding Machine Supplier

Technical Specification
Machine Model 100g 120g 150g 200g 250g 400g 600g 1kg 1.5kg 2kg
Injection Unit
Screw Diameter (mm) 35 40 42 45 50 55 60 65 80 75
Max. Inj. Pressure (Kg/cm2) 1250 1250 1290 1290 1290 1550 1600 1800 1800 1250
Screw L.D. Ratio L/D 20 18 20 18 20 20 20 18 18 18
Shot Weight (PS) gms. 110 130 170 220 270 400 630 1000 1600 2000
Placticizing capacity (Kg./Hr). 40 40 45 60 65 80 85 180 210 250
Screw Speed (III speed) RPM 200 200 220 220 220 220 230 230 230 230
Injection Stroke (mm) 130 140 200 200 225 300 325 340 350 400
Hopper Capacity (Kg) 25 25 25 30 30 30 30 50 50 50
Mould Clamping Unit
Max. Clamping Force (Ton) 65 85 120 150 180 200 240 310 400 650
Mould Opening Stroke (mm) 265 295 325 350 375 430 700 765 900 600
Max. Day Light (mm) 565 620 700 750 775 880 1350 1600 1800 1810
Min. Mould Thickness (mm) 175 200 200 230 250 305 350 350 400 400
Max. Mould Thickness (mm) 300 325 400 425 405 450 650 700 750 750
Size of mould plate (mm) L 500 550 575 605 625 725 825 910 1200 1200
H 500 550 575 605 625 725 825 910 1200 1200
Dist. Between Tiebar (mm) 310 355 375 395 425 470 525 575 600 750
Tie Bar Diameter (mm) 60 65 70 80 80 100 125 130 135 140
Ejector Force (Ton) 2 2 3 3 3.5 4 6 9 12 13
Hydraulic Equipment
Hyd. System Pressure (kg/cm2) 175 175 175 175 175 175 175 175 175 175
Hyd. Pump (G.P.M) 8 11 12 15 17 21*8 21*8 24*11 28*12 38*12
OilTank Capacity (litres) 150 150 150 150 250 250 300 400 400 500
Electrical Equipment
Pump Drive Motor (H.P) 7.5 10 12.5 15 15 25 35 40 40 50
Heater Capacity (H.P) 3 3.5 5 6 6 7 9 12 12 13
Heating Zones 4 4 4 4 4 5 7 9 9 9
Installed Power Capacity 10.5 13.5 17.5 21 21 32 44 52 52 63

Standard Features
Moulding Machine Exporter, Moulding Machine Ahmedabad, Moulding Machine Gujarat, Moulding Machine India CLAMPING BIDE

  • 5 Point double Toggle clamping system of steel casting
  • Mould opening and clamping in three stage
  • Manual mould setting gear arrangement
  • Easy & fast lubricating system
  • Square tie bar distance with large mould height
  • High tensile, hard-chrome plated tie bar
  • Electrical interlocks in front and rear safety guards

Moulding Machine, Horizontal Plastic Injection Moulding Machine, Horizontal Plastic Injection Moulding Machine Manufacturer INJECTION BIDE

  • Digital temperature controllers and timers
  • High torque hydraulic motor for screw drive
  • Automatic suck back system
  • Two Stage injection speed
  • Gas-nitride screw barrel with standard L/D Ratio
  • Injection movement is actuated by Twin hydraulic cylinders, for perfect alignment to the clamp unit
  • Injection unit siding on hard-chrome steel treated ground tie bars.
  • Stainless steel hopper with magnetic grill with swiveling system.

Plastic Injection Moulding Machine Exporter, Injection Moulding Machine, Injection Moulding Machine Manufacturer HYDRAULIC & ELECTRICAL

  • Resiliently mounted hydraulic pump
  • Suction Iine oil filer
  • Limit switch for stroke control
  • MCB Control for each heating zone
  • Star Delta starter for pump motor 200 TO 650 Tonnes
  • Overload protection for pump motor

Horizontal Plastic Injection Moulding Machine Supplier, Plastic Injection Moulding Machine, Plastic Injection Moulding Machine Manufacturer Optional Features
  • Mould setting gear arrangement by Hydro-motor
  • Centralizes automatic lubricating system
  • Low pressure mould protection
  • Hydraulic ejector with timer
  • Air ejector with timer
  • Core pulling system
  • ‘V’ Toggle clamping system for largest opening
  • Ceramic Band heater
  • Screw back pressure control
  • Oil temperature control Meter
  • 24 Volt DC solenoid valve
  • Rigid PVC Attachment
  • PET Pre-form Attachment
  • Double Color Attachment

Please Note :
We reserve the right to make any kind changes for the above specific model without any prior notice.
