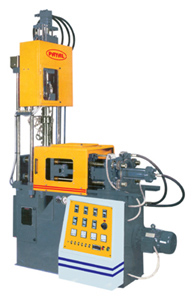

Vertical Screw Type Injection Moulding Machine
.......................................................................................................................

Availability :


Vertical Injection Moulding Machine Vertical Injection Moulding Machine, Vertical Injection Moulding Machine Manufacturer, Screw Injection Moulding Machine, Screw Injection Moulding Machine Manufacturer, Injection Moulding Machine Vertical Injection Moulding Machine

Technical Specification
Desription Unit PV50 PV100 PV150
Injection Unit
Screw Diameter mm 25 30 35
Maximum Injection Screw kg/cm 1100 1200 1250
Shot Capacity Gms/cm2 50 100 120
(PS) Screw Speed RPM 200 200 200
Injection Stroke mm 125 150 150
Clamping Unit
Maximum Mould Clamping Force Tons 20 40 45
Mould Opening Stroke Maximum mm 150 175 200
Day-Light mm 300 375 400
Minimum Mould Thickness mm 75 75 75
Maximum Mould Thickness Size of mm 150 200 200
Mould Plate mm 320x250 360x360 400x380
Distance Between Tie Bar mm 200x180 240x240 300x280
Hydraulic Equipment
Hydraulic Pump Oil GPM 5 8 11
Tank Capacity Ltrs 80 90 120
Electrical Equipment
Hydraulic Drive Motor 3 phase 1440 RPM HP 3 5 7.5
Heating Capacity Installed HP 4 5 6
Total Power HP 7 10 13.5

<img src="image/bullets.jpg" width="8" height="11" /> Standard Features
  • 5 5 Point Toggle system
  • Slow fast slow system
  • Low pressure mould safety
  • Max. tie bar distance with maximum daylight
  • Gas-nitride screw barrel with standard L/D Ratio
  • Two stage injection speed
  • Electrical safety interlocks for safety guards
  • Suck back system
  • High torque medium speed hydraulic motor for screw drive
  • All zone Digital temperature controllers
  • Cycle time setting by digital timer
  • Low noise
  • Low power consumption with higher production hydraulic circuit
  • Mould setting gear arrangement

bullets Optional Features
  • Multi stroke hydraulic ejector
  • Micro-processor base controller with proportional control valve
  • Air ejector with timer
  • 24 Voltage solenoid valves
  • Automatic lubricating system

Please Note
We reserve the right to make any kind changes for the above specific model without any prior notice.
