Compact Horizontal Plastic Injection Moulding Machine Compact Horizontal Plastic Injection Moulding Machine Compact Horizontal Plastic Injection Moulding Machine Compact Horizontal Plastic Injection Moulding Machine Compact Horizontal Plastic Injection Moulding Machine

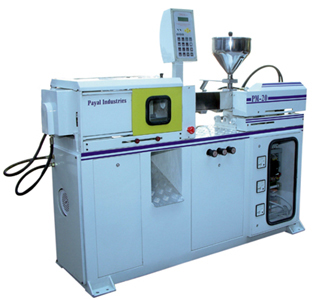

Compact Horizontal Plastic Injection Moulding Machine
........................................................................................................................................

Availability :
This Machine is available in PE, PM & PI series

Horizontal Injection Moulding Machine Compact Injection Moulding Machine, Compact Injection Moulding Machine Manufacturer, Injection Moulding, Injection Moulding Machine Manufacturer, Injection Moulding Machine SuppliHorizontal Injection Moulding Machine, Compact Horizontal Plastic Injection Moulding Machine Plastic Injection Moulding Machine

Technical Specification
Desription 20 gms 30 gms 40 gms 60 gms 80 gms
Injection Unit
Screw Diameter in MM 19 22 25 30 32
Maximum Injection Pressure in Kgs/sq.cms 1580 1580 1650 1250 1550
Shot Weight (PS) in gms 22 30 40 60 80
Injection Stroke in mm 100 100 100 130 150
Mould Clamping Unit
Maximum Clamping Force in Tonnes 20 20 30 40 50
Mould Opening Stroke in mm 85 125 150 240 250
Maximum Day light in mm 290 425 500 490 530
Minimum/maximum Mould Thickness in mm 100/205 100/250 100/300 150/250 150/280
Size of the Mould Plate in mm 205 x 205 260 x 260 320 x 320 350 X 350 450 x 450
Distance between Tie-bar in mm 125x125 175x175 220 x 220 270 x 270 290 x 290
Hydraulic Equipment
Hydraulic Pump capacity in Gallons/Min 2 4 5 8 8
Electrical Equipment
Pump Drive Motor in HP 2 3 5 7.5 7.5
Heater Capacity in HP 2.5 3 3 3 3
Installed Power capacity in HP 4.5 6 8 10.5 10.5

 Standard Features
Injection Moulding Machine Supplier, Injection Moulding Machine Exporter, Moulding Machine, Moulding Machine Manufacturer Standard Features for PM Series
  • 5 Point double Toggle clamping system of steel casting
  • Mould opening and clamping in three stage
  • Manual mould setting gear arrangement
  • Automatic lubricating system in Toggle side
  • Single stroke hydraulic ejector
  • Square tie bar distance with large mould height
  • High tensile, hard-chrome plated tie bar
  • Electrical interlocks in front and rear safety guards
  • Ceramic Band heater
  • High torque hydraulic motor for screw drive
  • Automatic suck back system
  • Two Stage injection speed
  • Gas-nitride screw barrel with standard L/D Ratio
  • Injection movement is actuated by two hydraulic cylinders, for perfect alignment to the clamp unit
  • Injection unit siding on hard-chrome steel treated ground tie bars. Easy access to the screw is ensured
  • Stainless steel hopper with magnetic grill with swiveling system to permit the easy change of the material
  • Limit switch for stroke control
  • MCB Control for each heating zone
  • Star Delta starter for pump motor 200 TO 650T
  • Overload protection for pump motor

Moulding Machine Exporter, Moulding Machine Ahmedabad, Moulding Machine Gujarat, Moulding Machine IndiaStandard Features for PE Series

Horizontal Plastic Injection Moulding Machine, Horizontal Plastic Injection Moulding Machine Manufacturer CLAMPING BIDE

  • 5 Point double Toggle clamping system of steel casting
  • Mould opening and clamping in three stage
  • Manual mould setting gear arrangement
  • Easy & fast lubricating system
  • Square tie bar distance with large mould height
  • High tensile, hard-chrome plated tie bar
  • Electrical interlocks in front and rear safety guards

Horizontal Plastic Injection Moulding Machine Supplier, Plastic Injection Moulding Machine, Plastic Injection Moulding Machine Manufacturer INJECTION BIDE

  • Digital temperature controllers and timers
  • High torque hydraulic motor for screw drive
  • Automatic suck back system
  • Two Stage injection speed
  • Gas-nitride screw barrel with standard L/D Ratio
  • Injection movement is actuated by Twin hydraulic cylinders, for perfect alignment to the clamp unit
  • Injection unit siding on hard-chrome steel treated ground tie bars.
  • Stainless steel hopper with magnetic grill with swiveling system.

Plastic Injection Moulding Machine Supplier, Plastic Injection Moulding Machine Exporter, Injection Moulding Machine, Injection Moulding Machine Manufacturer, Injection Moulding Machine Supplier HYDRALIC & ELECTRICAL

  • Resiliently mounted hydraulic pump
  • Suction Iine oil filer
  • Limit switch for stroke control
  • MCB Control for each heating zone
  • Star Delta starter for pump motor 200 TO 650 Tonnes
  • Overload protection for pump motor

<img src="image/bullets.jpg" width="8" height="11" />Standard Features for PI Series
  • 5 Point double Toggle clamping system of steel casting with steel link and steel bushes with tempered steel pins
  • Hydraulic ejector through plate with multiple ejector cycles through nine strokes
  • Multiple point automatic lubricating system
  • Clamp closing and clamp opening profile with programmable and independent strokes and speeds
  • Low pressure mould protection with high mould safety
  • Freely programmable control of max. 2 core pulls and air for the control of max. 1 valve
  • Mould opening and clamping in Four stages
  • Mould setting gear arrangement by Hydro-motor
  • Square tie bar distance with large mould height
  • High tensile, hard-chrome platted tie bar
  • Electrical interlocks in front and rear safety guards
  • Ceramic heater
  • High torque hydraulic motor for screw drive
  • Automatic suck back system
  • Four stage injection and four stage holding time
  • Cold start protection
  • Gas-nitride screw barrel with standard L/D Ratio
  • Injection movement is actuated by two hydraulic cylinders, for perfect alignment to the clamp unit
  • Injection unit sliding on hard-chrome steel treated ground tie bars
  • Stainless steel hopper with magnetic grill mounted on a swiveling system
  • Injection speed, pressure and holding time profile on 7 steps
  • Proportional valve for pressure and flow control with electronic feedback
  • Suction and return oil filter
  • Component easily accessible for maintenance purpose
  • Resiliently mounted hydraulic pump
  • Sealed oil tank with oil temperature
  • 24 Volt DC solenoid valve
  • Clamping and injection strokes are monitor by linear transducers
  • M C B Control each heating zone
  • Star Delta starter for pump motor 200 TO 650T
  • Overload protection for pump motor

<img src="image/bullets.jpg" width="8" height="11" />Optional Features :

, Injection Moulding Machine Exporter, Moulding Machine, Moulding Machine Manufacturer, Moulding Machine Supplier Optional Features for PM Series

  • Mould setting gear arrangement by Hydro-motor
  • Centralizes automatic lubricating system
  • Air ejector with timer
  • Core pulling system
  • Ceramic Band heater
  • Screw back pressure control
  • Oil temperature control Meter
  • 24 Volt DC solenoid valve
  • Rigid PVC Attachment
  • PET Pre-form Attachment
  • Double Color Attachment

Moulding Machine Exporter, Moulding Machine Ahmedabad, Moulding Machine Gujarat, Moulding Machine India Optional Features for PE Series

  • Mould setting gear arrangement by Hydro-motor
  • Centralizes automatic lubricating system
  • Low pressure mould protection
  • Hydraulic ejector with timer
  • Air ejector with timer
  • Core pulling system
  • ‘V’ Toggle clamping system for largest opening
  • Ceramic Band heater
  • Screw back pressure control
  • Oil temperature control Meter
  • 24 Volt DC solenoid valve Rigid PVC Attachment
  • PET Pre-form Attachment
  • Double Color Attachment

Injection Moulding Machine Manufacturer, Injection Moulding Machine Supplier, Injection Moulding Machine Exporter, Moulding Machine Optional Features for PI Series

  • Core pulling System
  • Hydraulic shutoff nozzle
  • Pneumatic gate
  • Hydraulic ejector with liner transducer
  • PET Pre-form Attachment
  • Double Color Attachment
  • Rigid PVC Attachment

Please Note :
We reserve the right to make any kind changes for the above specific model without any prior notice.
